Model

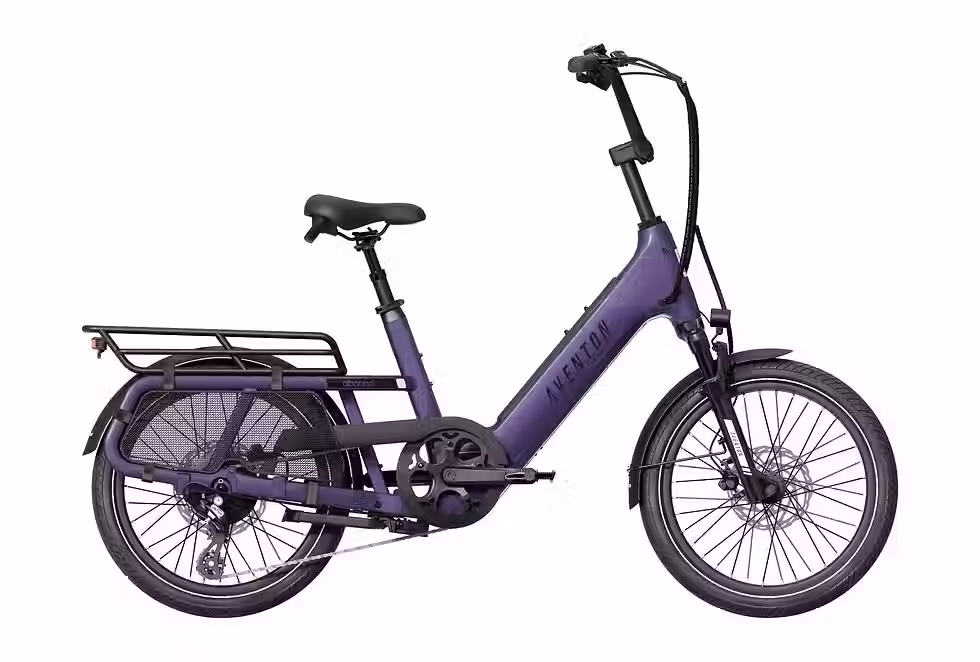

Abound SR Ebike
Weight
80 lbs
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Ebike Class
Class 2 Ebike
Ideal Use
Cargo & Utility
Pedal Assist
3 Levels (with Ride Tune Customization)
Safety Certifications
UL and TUV Safety Certified
UL 2849
Range
Up to 60 miles
Folding
No
Battery Safety Certifications
Certified to UL 2271
Carry Capacity
Carry A Single Passenger
Water Resistance
Bike - IPX5 // Components - IPX6
Frameset
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style
Step-Through
Frame
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Wheelset
Tires
20 x 3.0 urban tire with reflective sidewalls
Wheels
20-inch, 12-gauge, 36-hole, double-wall aluminum, black
Ebike System
Motor Torque
80Nm
ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
Aventon 4A 42V
Display
Aventon BC147
Speed
Class 2
Battery
Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Brakes
Rear Brake Rotor
Tektro 203mm 6 bolt
Front Brake
Tektro HD-E3520 hydraulic disc brakes
Rear Brake
Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Chain
122 Link, 8 Speed
Chainring
52 tooth
Crankset
3pc, 165mm crank arm
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shift Lever
Shimano SL-M315-8R 8 Speed
Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals
9/16" Composite Platform
Chainring BCD
130
Cockpit
Saddle
Aventon by SelleRoyal
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars
BMX Style, 31.8mm bar clamp, 680mm width
Stem
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp
34.9mm Quick Release
Grips
Lock-on ergonomic
Included Accessories
Rear Rack
Included
Kickstand
Included: E-lock
Rear Wheel Mesh Guards
Included
Rear Rack Weight Limit
143 lbs
Technical Overview
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
